Description

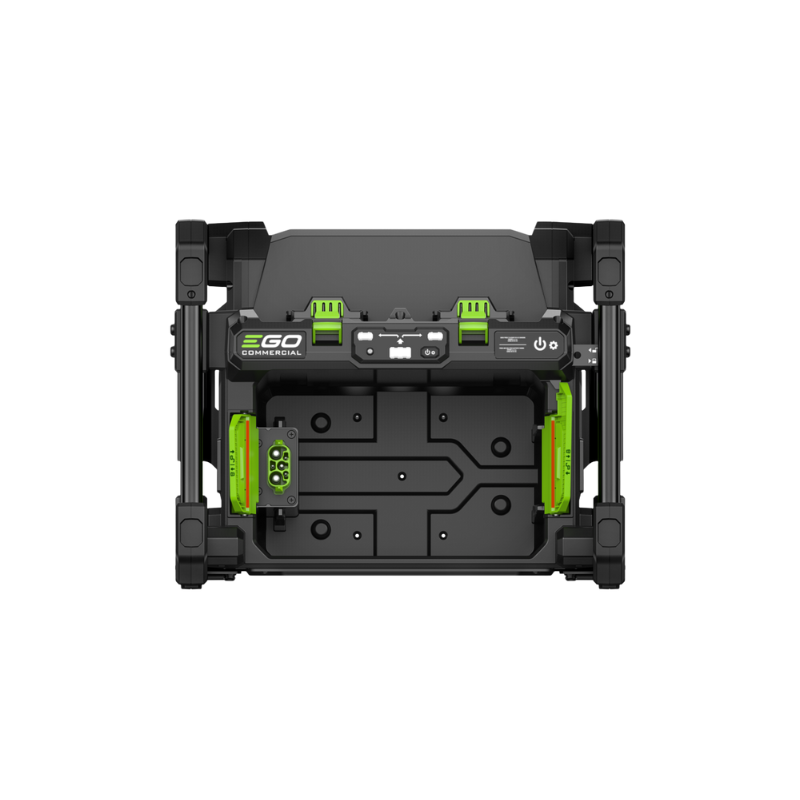

The PGX1604E‑H is a high-capacity 56V commercial charging hub with a built-in 2.2 kWh power bank, engineered for mobile crews, remote job sites, and fleet operators requiring off-grid charging. Offering dual 700 W outputs, modular scalability, and rugged build quality, this unit delivers dependable power where conventional supply isn’t available. It’s transport-ready, stackable, and built to endure tough outdoor use.
Key Features
Dual Charging Outputs: Two 700 W ports recharge two batteries simultaneously
Integrated 2.2 kWh Power Bank: Enables full off-grid charging without mains supply
Modular System: Chain up to six hubs to expand charging capacity for large fleets
Heavy-Duty Roll Cage: Steel frame design is weather-resistant, stackable, and site-ready
Enhanced Safety Features: LED status indicators and locking bar ensure secure use in commercial environments
Product Specifications
|
Specification |
Details |
|
Voltage / Type |
56V / Commercial charging hub with integrated power bank |
|
Build / Housing |
Steel roll-cage, stackable and weather-resistant |
|
Power Bank Capacity |
2.2 kWh (40 Ah) internal lithium battery |
|
Charge Outputs |
Dual 700 W simultaneous battery charging |
|
Expansion Capacity |
Chain up to six hubs into one integrated system |
|
Housings & Indicators |
Sealed frame with LED port indicators and locking bar |
|
Cable |
Includes 1.5 m daisy-chain cable for hub-to-bank connection |
|
Functions / Use Case |
High-volume charging in off-grid or remote commercial settings |
|
Warranty |
2-year commercial-use warranty |

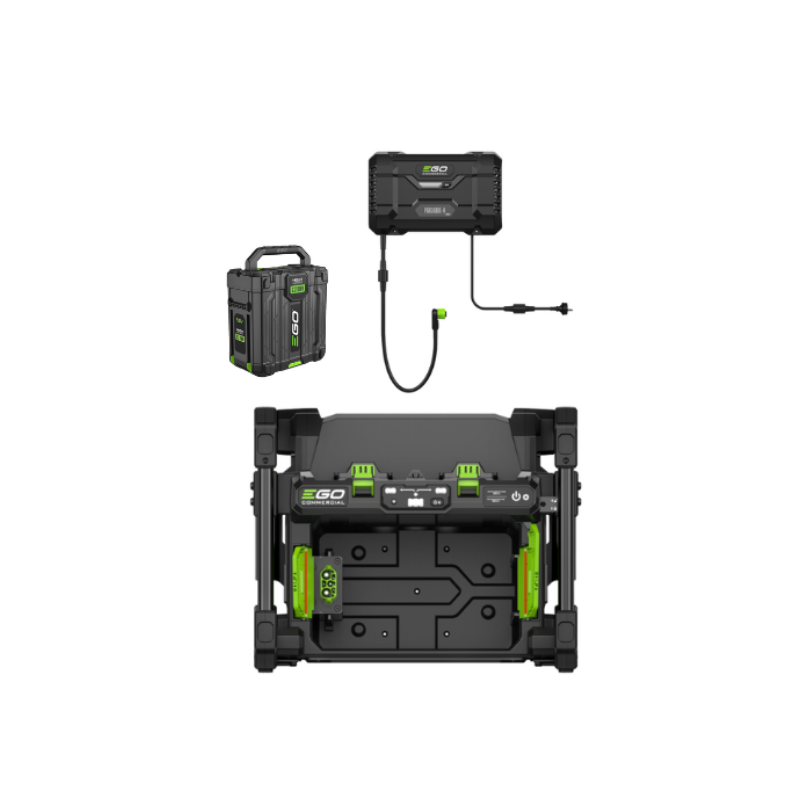

What’s in the Box

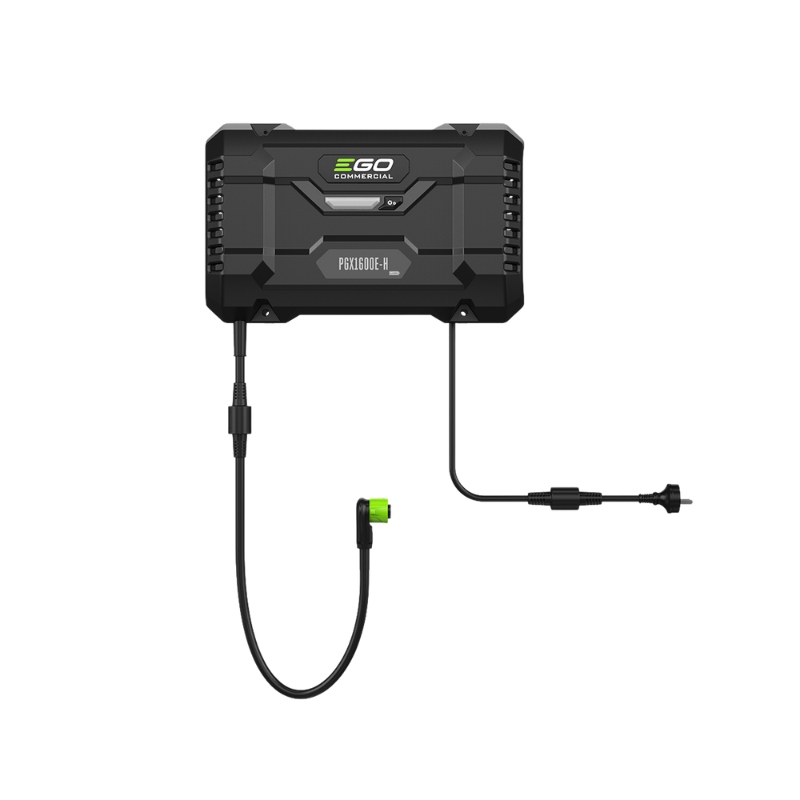

1 × PGX 1,600 W Charging Hub

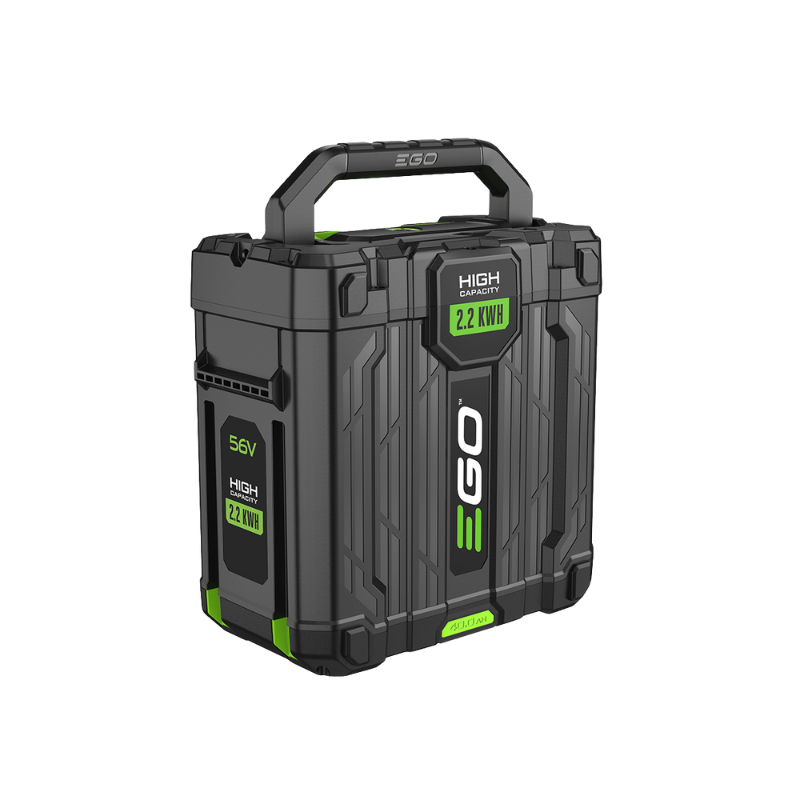

1 × PGX Power Bank (40 Ah)
1 × 1.5 m Daisy‑Chain Cable
User Manual / Safety Guide
Also Compatible With
All EGO 56V ARC Lithium™ Batteries and Chargers
PGX1603E‑H Charging Docks and Additional Power Bank Units
PGX Rack and Mounting Systems
