Description

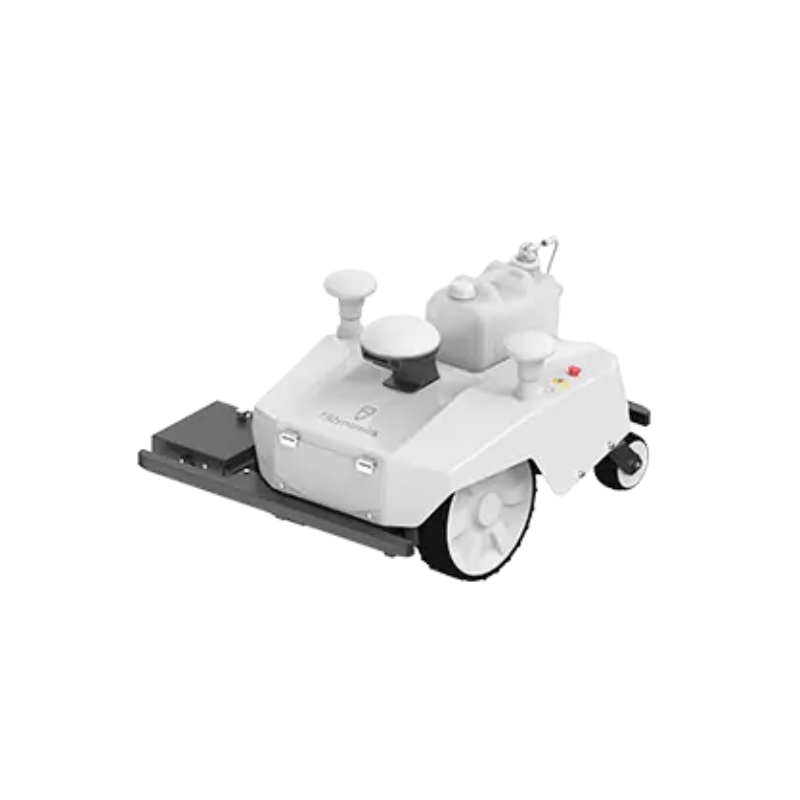

The FJD PaintMaster Pro RLM01 is a high-precision robotic line marker designed to make sports field marking faster, smarter, and more efficient. Engineered with dual industrial-grade GNSS positioning systems, it ensures centimetre-level accuracy across all types of fields. For areas where GPS coverage is limited, such as under trees or near grandstands, pairing it with the optional laser kit provides millimetre-level precision. With intelligent controls, long battery life, and effortless operation through an included tablet, this advanced line marker delivers professional-quality results while cutting down time and labour costs. Perfect for schools, councils, and sports clubs seeking a professional-grade finish every time.
Why You’ll Love It
Exceptional Precision: Dual GNSS systems deliver consistent centimetre-level accuracy on every line.
Laser Kit Ready: Optional laser kit ensures reliable performance even in GPS-challenged areas.
Smart and Simple Operation: Easy control through the supplied tablet with real-time monitoring and quick setup.
High Efficiency: Marks fields at speeds up to 3 km/h, saving both time and manpower.
Powerful Battery System: Offers up to 5 hours of runtime and supports quick battery swapping for continuous operation.
Professional Results: Designed to provide sharp, clean, and repeatable lines every time, ideal for multiple field types.
Specifications
|
Features |
Details |
|
Weight (Excluding Paint) |
58.6 kg |
|
Dimensions |
1068 × 1023 × 672 mm |
|
Marking Speed |
1–3 km/h |
|
Paint Bucket Capacity |
20 L |
|
Nozzle Height |
3–8 cm above ground |
|
Standard Battery Capacity |
0.5 kWh |
|
Expanded Battery Capacity |
1 kWh |
|
Mobile Battery Energy Storage |
Supported |
|
Fast Battery Swapping |
Supported |
|
Base Station |
Included as standard |
|
Operation Tablet |
Included as standard |
|
Handheld Point Marker |
Included as standard |
|
Laser Kit |
Optional |
|
Battery Life (0.5 kWh) |
5 hours |
|
Charging Time (0.5 kWh) |
2 hours |
|
Working Temperature |
5–45 °C |
Minimum order quantity: 5 units required. Individual units are not available for purchase at this time.

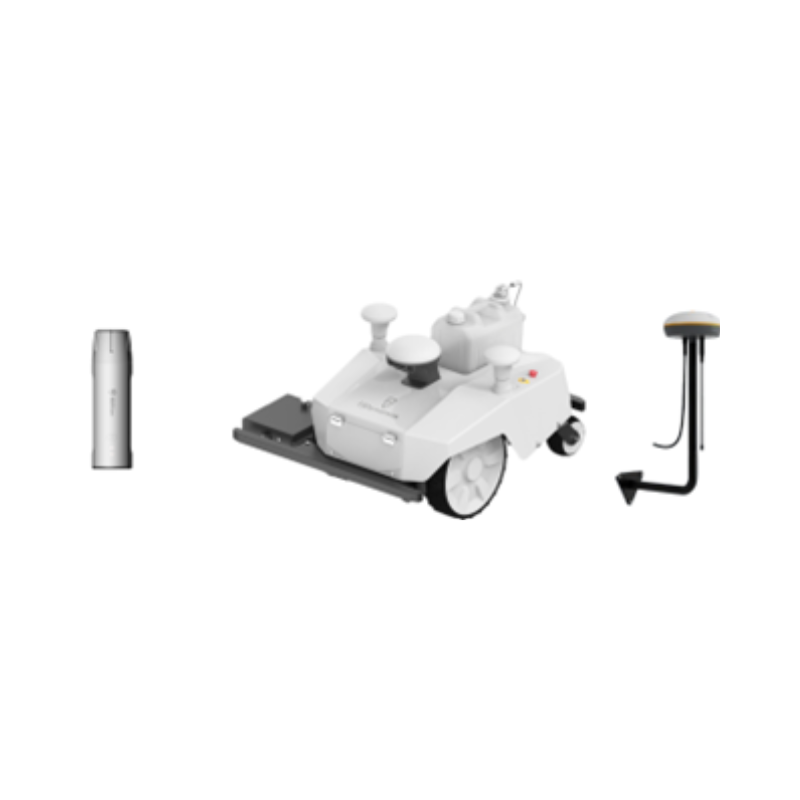

What’s in the Box
1 × FJD PaintMaster Pro RLM01 Robotic Line Marker
1 × Base Station
1 × Operation Tablet
1 × Handheld Point Marker
1 × Standard Battery Pack
1 × Charger
Compatibility
Compatible with FJD laser kit for enhanced precision and other FJD PaintMaster accessories.
Warranty
Covered by FJD’s manufacturer warranty for peace of mind. Warranty terms and coverage vary by authorised dealer.
