Description

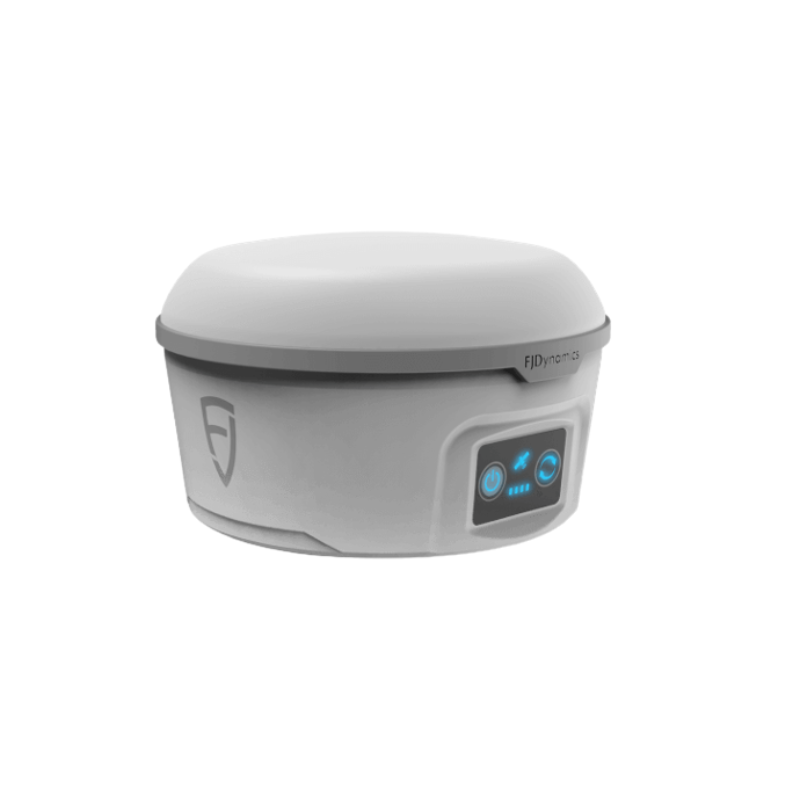

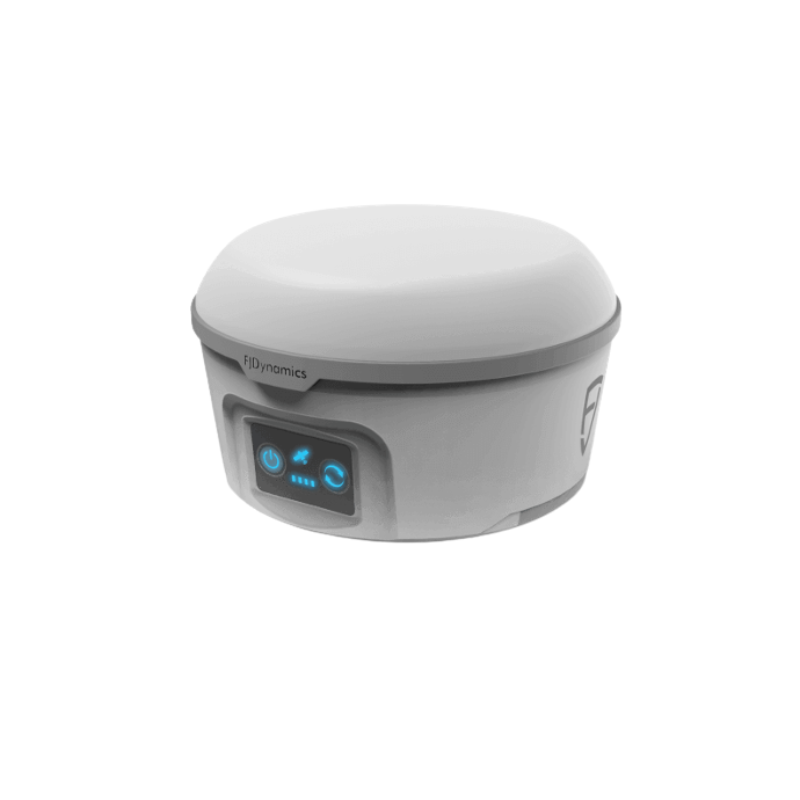

The FJD RTK Base Station delivers centimeter-level precision for positioning and navigation systems. By correcting GNSS signals, it achieves up to 2.5 cm accuracy, making it ideal for precision agriculture when paired with the FJD Autosteering Kit or for digital construction projects with the 3D Excavator Guidance System. Designed with modular components, removable battery, quick setup, and global signal coverage, it ensures uninterrupted performance in diverse outdoor environments.
Why You’ll Love It
Centimeter-level accuracy: RTK correction enables 2.5 cm positioning precision.
Global signal coverage: Supports GPS, GLONASS, Beidou, Galileo, and QZSS.
Automated channel detection: High-gain antenna and receiver optimize signal quality.
Quick setup: Rugged IP65 design allows rapid deployment in outdoor environments.

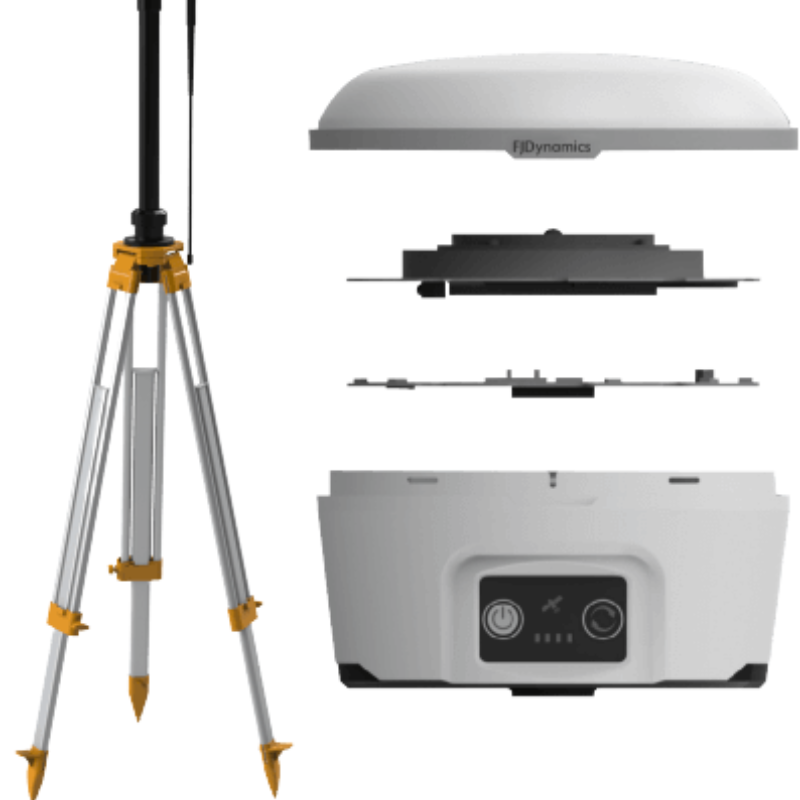

Modular design: Flexible base station, bracket, and optional antenna stand.

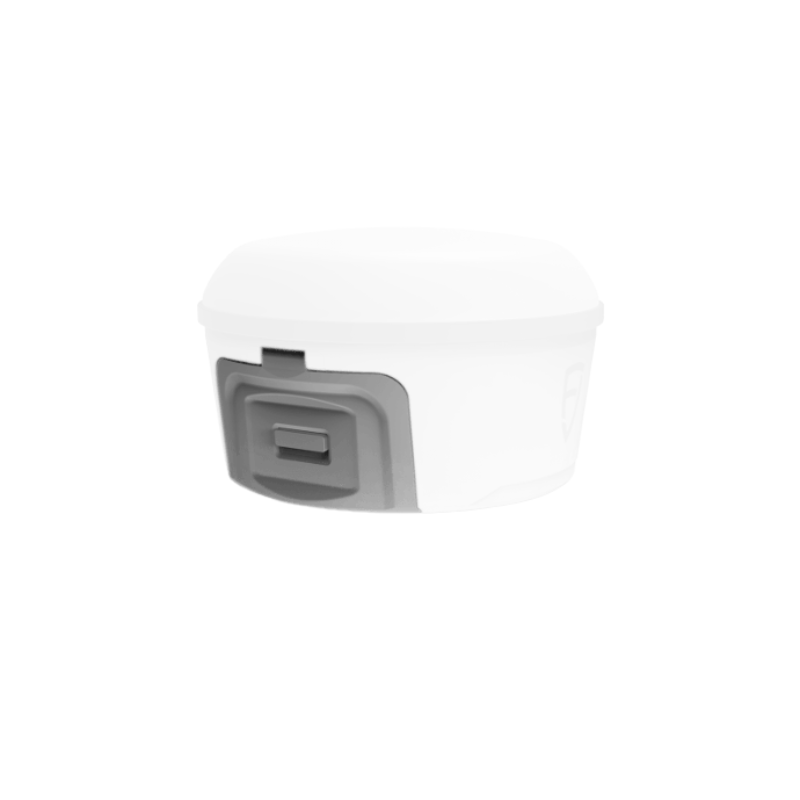

Removable dual battery: 12-hour duration with hot-swappable power supply.
Specifications
|
Features |
Details |
|
Satellite Tracking |
624 channels; supports complete Beidou constellation; upgradeable to Beidou III |
|
Tracking Features |
BDS: B1/B2 (upgradeable B3), GPS: L1/L2, GLONASS: L1/L2, GALILEO: E1/E5B, QZSS: L1/L2 |
|
RTK Accuracy |
Plane: 1 cm + 1 ppm; Elevation: 1.5 cm + 1 ppm |
|
Single Point Positioning |
Plane: 1.5 m; Elevation: 2.5 m |
|
DGPS Accuracy |
Plane: 0.4 m; Elevation: 0.8 m |
|
Positioning Update Rate |
1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |
|
Initialization Time |
<10 seconds |
|
Recapture |
<1 second |
|
Reliability |
>99.9% |
|
Differential Format |
RTCM v3.0/3.2 |
|
Battery |
Dual 5200 mAh (10400 mAh total), 7.4V, up to 12 hrs, hot-plugging supported |
|
Power Adapter |
AC 100-240V 50/60Hz input, 12V 5A output |
|
Charger |
QC3.0 fast charge |
|
Dimensions |
Φ178 × 110 mm |
|
Material |
Aluminum alloy |
|
Protection |
IP65 waterproof and dustproof |
|
Operating Temp |
-40℃ to 65℃ |
|
Storage Temp |
-50℃ to 75℃ |
Minimum order quantity: 5 units required. Individual units are not available for purchase at this time.
What’s in the Box
FJD RTK Base Station, Dual Removable Battery Pack, Power Adapter, QC3.0 Battery Charger, Bracket Module, Antenna Stand Module (optional), User Manual.
Compatibility
Works seamlessly with FJD Autosteering Kit for agriculture and FJD 3D Excavator Guidance System for construction.
