Description
Small in hand, boundless on land – the FJD Trion V4E Mini RTK Receiver redefines portable precision. Weighing just 320g, it delivers centimeter-level accuracy without the need for centering rods, making it ideal for surveyors, engineers, and field professionals on the move. With its built-in IMU and up to 30° tilt compensation, it ensures accurate positioning in challenging conditions. Compact, budget-friendly, and user-friendly, the V4E unlocks high-accuracy surveying with true convenience.
Why You’ll Love It
Pocket-sized portability: Weighs only 320g, designed for handheld use.
High precision performance: Achieves H≤0.8 cm + 1 ppm and V≤1.5 cm + 1 ppm accuracy.
Built-in IMU tilt survey: Supports up to 30° tilt without loss of accuracy.
Laser measurement precision: Delivers ≤3 cm accuracy at 3 m distance.

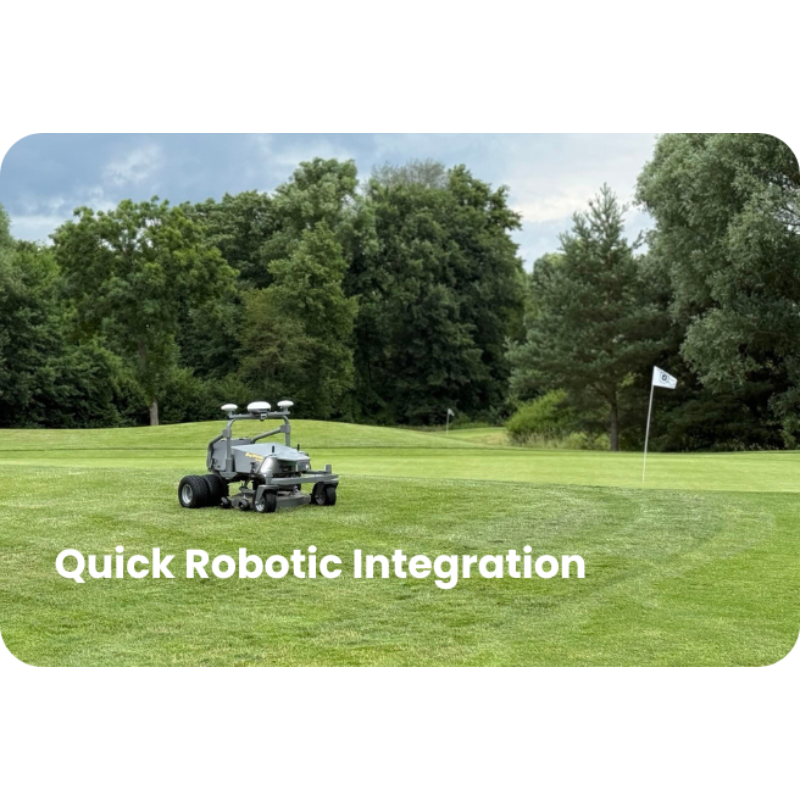

Seamless FJD ecosystem integration: Works directly with FJD farming autosteering systems, robotic mowers, and survey apps.
Long-lasting efficiency: ≥12h battery life with ≤3h charging time.
Durable design: IP67 waterproof rating, 1.2m anti-drop protection, and rugged PC+ABS shell.
Specifications
|
Features |
Details |
|
Channels |
1408 |
|
Supported Constellations |
GPS (L1C/A, L2P, L5), GLONASS (G1, G2), Galileo (E1, E5a, E5b, E6*), BDS (B1I, B2I, B3I, B1C, B2a, B2b*), QZSS (L1, L2C, L5), SBAS (L1C/A) |
|
Data Types |
RTCM2.3, RTCM 3.x, CMR |
|
Data Format |
NMEA-0183 |
|
Signal Reacquisition |
≤1s |
|
Startup Time |
Cold ≤30s, Hot ≤5s |
|
RTK Initialization Time |
<5s |
|
Accuracy (RMS) |
Single point: H≤1.5 m, V≤2.5 m; DGPS: H≤0.4 m, V≤0.8 m; RTK: H≤0.8 cm+1 ppm, V≤1.5 cm+1 ppm |
|
Time Accuracy |
20 ns |
|
Speed Accuracy |
0.03 m/s |
|
Data Update Rate |
1–20 Hz (1, 2, 5, 10, 15, 20 Hz) |
|
Laser Tilt Measurement |
≤3 cm error @3 m (tilt ≤30°) |
|
Battery Life |
≥12h |
|
Charging Time |
≤3h |
|
Power Consumption |
≤1.5W |
|
Charging Specs |
5V/2A, USB 2.0 Type-C |
|
Connectivity |
Bluetooth 4.0 dual-mode (5 m), Wi-Fi 2.4G (300 m in base station mode) |
|
Dimensions |
182 × 53 × 53 mm |
|
Weight |
320 g |
|
Shell Material |
PC+ABS |
|
Mounting Interface |
1/4" thread |
|
Operating Temperature |
-20°C to 60°C |
|
Charging Temperature |
0°C to 45°C |
|
IP Rating |
IP67 |
|
Drop Protection |
1.2 m |
Minimum order quantity: 5 units required. Individual units are not available for purchase at this time.
What’s in the Box
The package includes the FJD Trion V4E Mini RTK Receiver, Type-C charging cable, base station support, handheld mounting accessories, and user documentation for setup and operation.
Compatibility

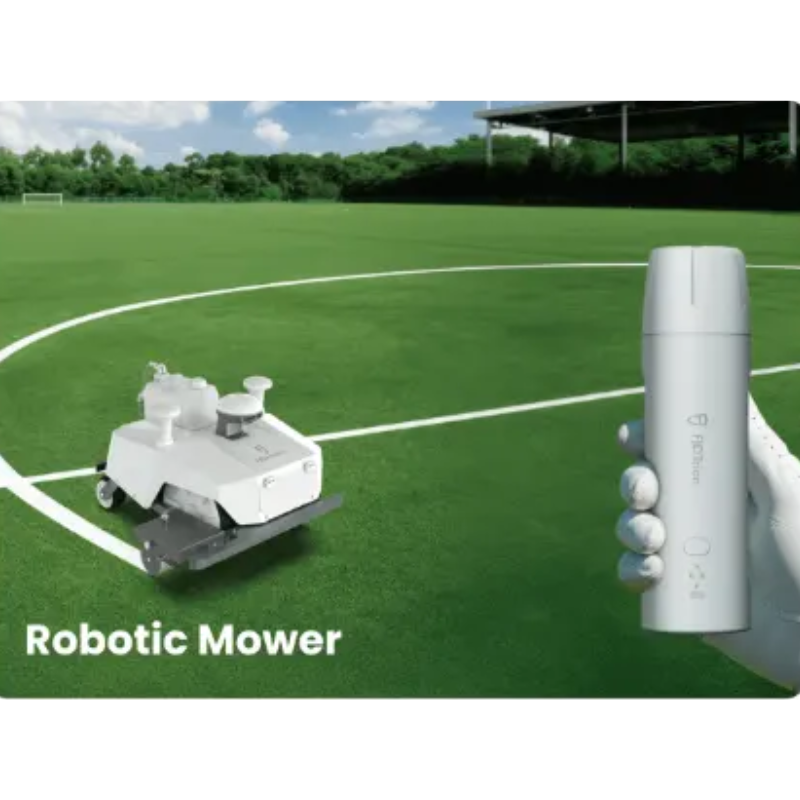

Works seamlessly with FJD farming autosteering systems, robotic mowers, personal survey apps, and other FJD smart devices for topographical, construction, utility, forestry, and road surveying applications.
