Description
Description
The RLM01 Robotic Line Marker, powered by the FJD PaintMaster Pro system, is an intelligent solution for sports field marking. Designed with industrial-grade GNSS positioning systems and a local base station, it delivers centimeter-level accuracy and ensures perfect line marking every time. When paired with the optional FJD laser kit, the robot achieves millimeter-level precision even in GPS-challenging environments, such as under trees or near stadium stands. Built to save time and reduce labor costs, the RLM01 is the future of efficient, professional line marking.
Why You’ll Love It
High precision performance: Dual GNSS systems and local base station provide unmatched accuracy and signal stability.

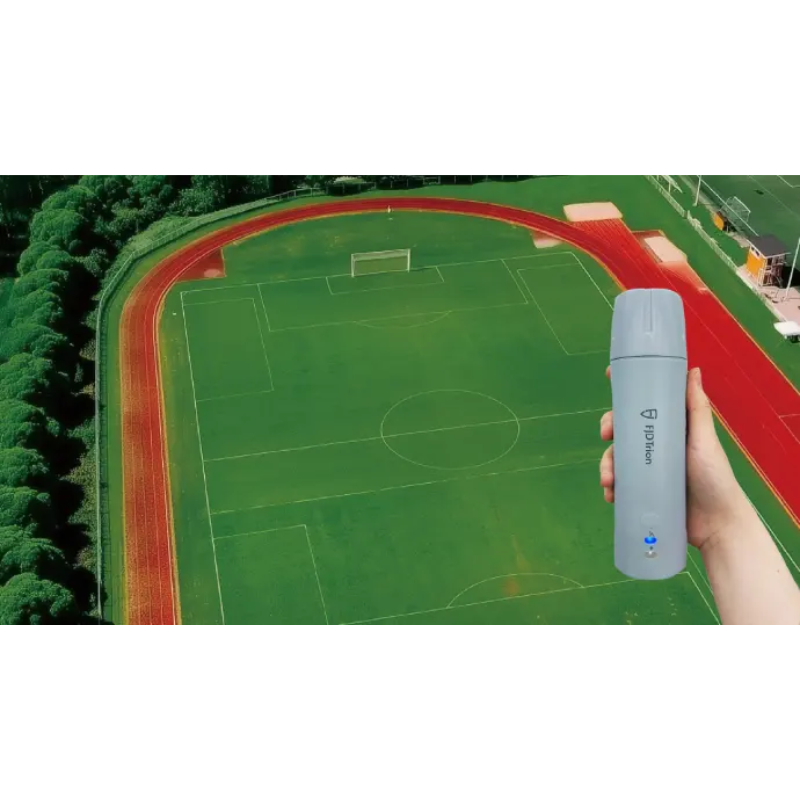

Convenient mapping: Handheld point marker allows quick mapping in minutes without driving around the field.
Cost and labor savings: Reduce labor costs by over 90% while optimizing paint use and power efficiency.

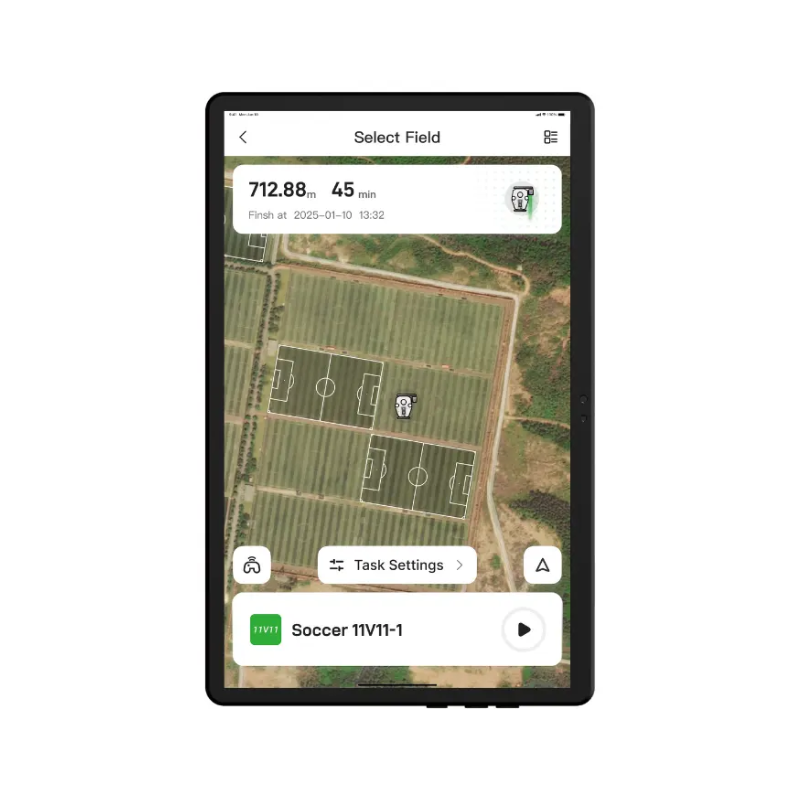

Smart software integration: Customize maps, monitor marking status in real time, and manage multiple devices via the cloud platform.
Efficient operation: Fast battery swapping, multi-field mapping, and all-weather 24/7 operation keep productivity high.
User-friendly design: Lightweight, portable, and equipped with an independent paint filling port and easy paint bucket change for quick maintenance.

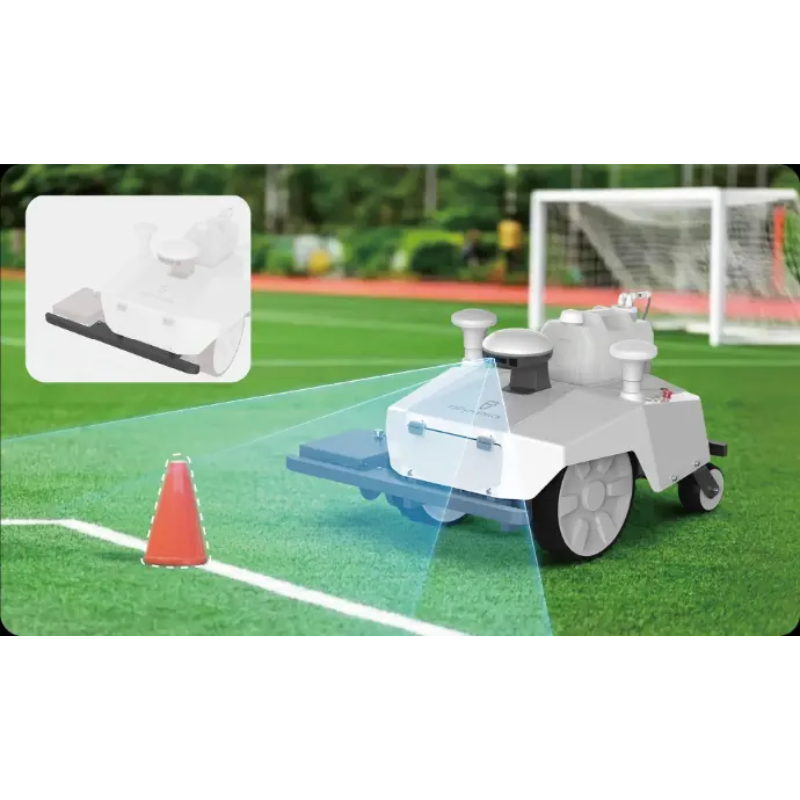

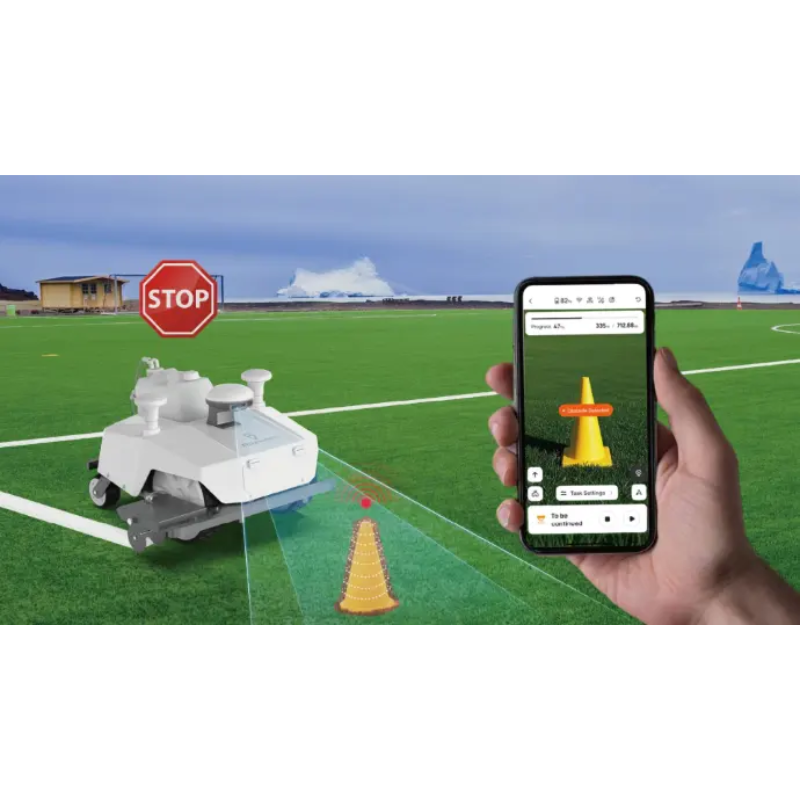

Safe and reliable: Dual protection with real-time monitoring, bumper strips, and automatic stop via binocular camera ensures operator and machine safety.
Specifications
|
Features |
Details |
|
Weight (Excluding Paint) |
58.6 kg |
|
Dimensions |
1651 × 1372 × 1321 mm / 65 × 54 × 52 in. |
|
Marking Speed |
1–3 km/h |
|
Paint Bucket Capacity |
20 L |
|
Nozzle Height |
3–8 cm above ground |
|
Standard Battery Capacity |
0.5 kWh |
|
Expanded Battery Capacity |
1 kWh |
|
Mobile Battery Energy Storage |
Supported |
|
Battery Life (0.5 kWh) |
5 hours |
|
Charging Time (0.5 kWh) |
2 hours |
|
Working Temperature |
5–45 ℃ |
|
Fast Battery Swapping |
Supported |
|
Base Station |
Standard offering |
|
Operation Tablet |
Standard offering |
|
Handheld Point Marker |
Standard offering |
|
Laser Kit |
Optional offering |
Minimum order quantity: 5 units required. Individual units are not available for purchase at this time.
What’s in the Box

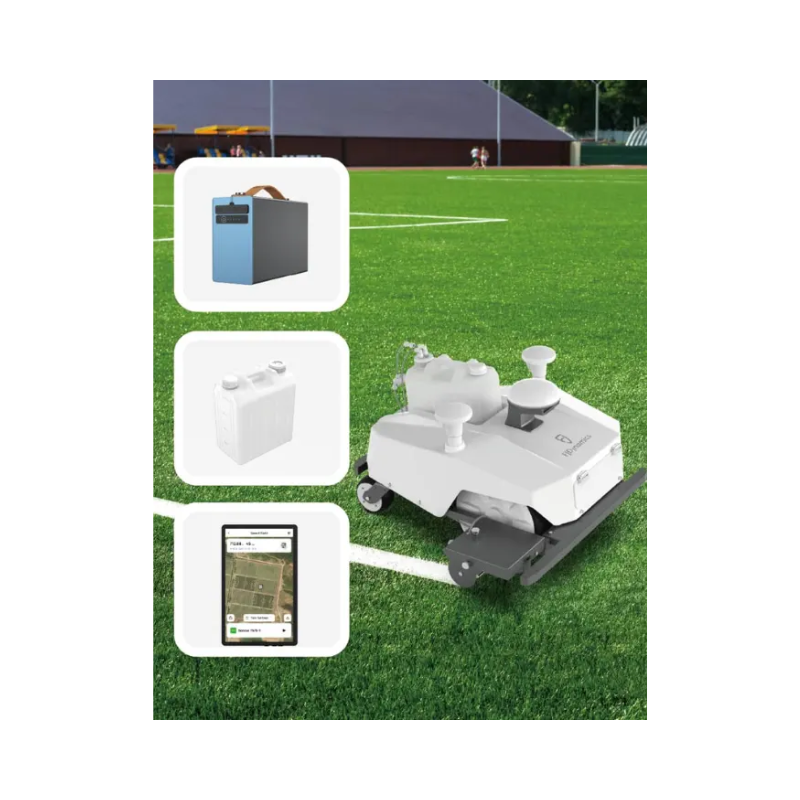

The package includes the RLM01 Robotic Line Marker, base station, operation tablet, handheld point marker, and a standard 0.5 kWh battery.
Compatibility
Compatible with optional FJD laser kit for enhanced millimeter-level accuracy and supports fleet management for operating multiple marking robots simultaneously.
