Description

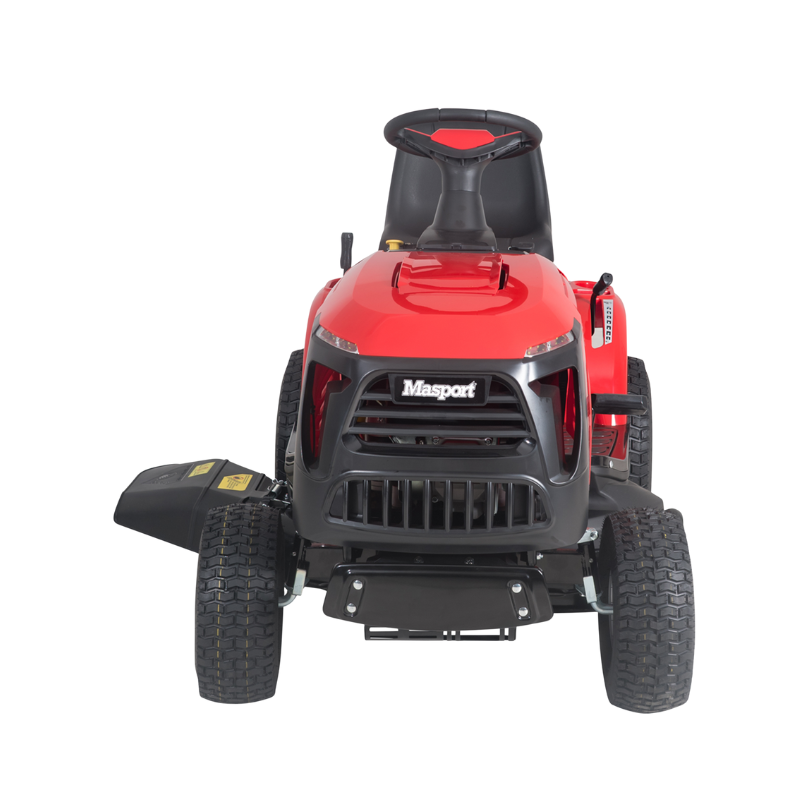

The Masport TTM98SM Ride-On Mower is designed to deliver dependable performance with easy operation. Powered by a Masport M400 Series 432cc 12HP single cylinder engine, it features a robust 38 inch steel cutting deck with side discharge and mulching capability for a cleaner, healthier lawn. With a 5-speed manual transmission, electromagnetic blade engagement, and anti-scalp wheels, this mower ensures a precise cut every time. Built for operator comfort and durability, it includes LED headlights, adjustable high back seat, and ergonomically positioned controls for a smooth mowing experience.
Why You’ll Love It
Powerful Engine: Equipped with a 12HP 432cc Masport M400 Series engine that balances performance with low vibration and noise.
Efficient Cutting: 38 inch (980mm) steel cutting deck with anti-scalp wheels for a consistent finish.

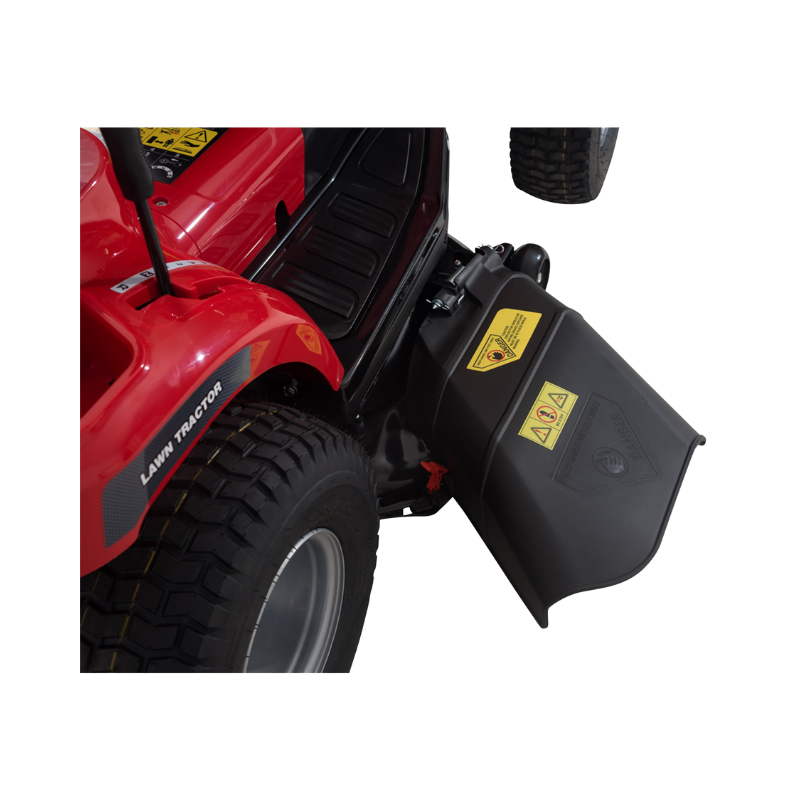

Dual Functionality: Mulching plug included for recycling grass into nutrients, or side discharge for quick mowing.
Durable Design: Alloy spindle housing keeps bearings cooler, extending working life.
Smooth Operation: 5-speed manual transmission and electromagnetic clutch for simple blade control.
Operator Comfort: Adjustable high back seat, ergonomically placed controls, and pivoting steel front axle.

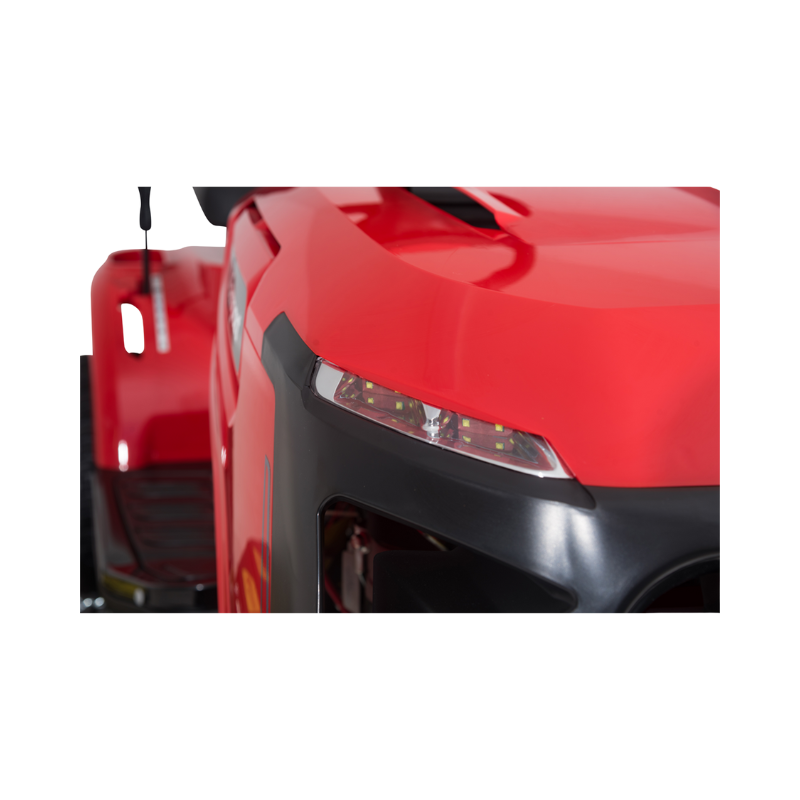

Convenience Features: LED headlights, tow hitch, deck wash port, and park brake.
Reverse Capability: Reverse Mode Operation (RMO) allows mowing while reversing.
Specifications
|
Features |
Details |
|
Engine Make |
Masport |
|
Engine Model |
M400 Series |
|
Engine Capacity |
432cc (12HP) |
|
Cylinders |
1 |
|

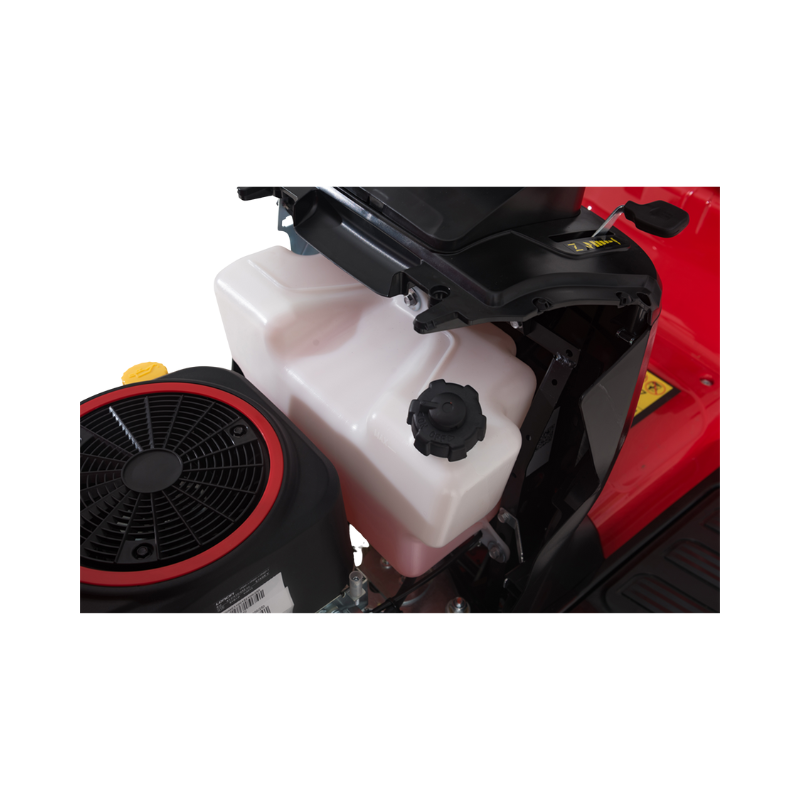

Fuel Tank Capacity |
7.5L |
|
Engine Oil Capacity |
1.2L |
|
Battery |
12V, 18Ah |
|
Blade Type |
2 blades |
|
Cutting Width |
980mm (38 inch) |
|
Cutting Height Range |
30 – 90mm, 7 positions |
|
Blade Engagement |
Electromagnetic |
|
Transmission |
5-speed manual |
|
Drive System |
V-Belt |
|
Forward Speed |
0 – 7.5 km/h |
|
Reverse Speed |
0 – 2.5 km/h |
|
Chassis Material |
Steel |
|
Deck Type |
Side discharge |
|
Deck Fabrication |
Steel |
|
Steering |
Rack and pinion |
|
Turning Radius |
45cm |
|
Seat Type |
Adjustable high back |
|
Deck Lift |
Manual |
|
Wheel Base |
1170mm |
|
Front Tyres |
15 × 6.0 – 6 |
|
Rear Tyres |
18 × 8.5 – 8 |
|
Accessories |
Mulch plug included, tow hitch |
|
Weight |
169.5kg |
|
Product Dimensions (W × H × L) |
1210mm × 1110mm × 1695mm |
What’s in the Box
1 × Masport 38 Inch Steel Side Discharge Ride On Mower 12HP TTM98SM 553386
1 × Mulch Plug
1 × Operator’s Manual
Compatibility
Ideal for medium to large lawns, lifestyle blocks, and properties requiring a versatile ride-on mower with mulching and side discharge options.
Warranty
2 Year Domestic Warranty, plus 1 Year upon registration.
Engine is covered under Masport manufacturer warranty.
